Creating Video Elements

| previous tutorial | ACG home | Instructor home | Class home | List of tutorials | next tutorial |

Before beginning the project

• If you are working in the ACG Lab click to read these important notes before you start the tutorial. This section of the directions contains information that pertains specifically to the way the ACG Lab operates. It may not apply if you work on the project elsewhere.
• If you need to get for yourself the programs mentioned in this tutorial:
  • Premiere is a commercial program by Adobe Systems.
  • QuickMovie is bundled with the QuickCam hardware by Logitech International S.A.

Tutorial Description

In this first session, we'll create the elements for our video:

• A live-action recording (using a video digitizer).
• A video digitized still image (to be used for a thumbnail link to our video).
• A title card (a full-screen image with type).

As in previous occasions, you will find familiar features in this program, helping you to guess function and operation. The Title window has many of the standard facilities of drawing programs like FreeHand. In the following session, we'll also see the Project window, which displays a visual list of the elements to be edited (like the Cast window in Director); and the Timeline window, used to arrange those same elements (similar to the Score window in Director).

At the end of the tutorial, you will have two new files (camera footage in QuickTime format, and a still image in Premiere Title format). Save these two files, which will be combined into an edited video during the following session.

Record Video

1. Use Apple-->Control Panels-->Memory
   • If you find that Virtual Memory is on, turn it off. After you close the Memory control panel, use the Special-->Restart command in the Finder to reboot the computer.
   • If Virtual Memory is already off, simply close the Memory control panel. There is no need to reboot the computer.
2. Turn off AppleTalk to minimize interruptions

3. Switch display to thousands of colors to improve playback speed

4. Connect the camera and the microphone to your computer.
5. Reset all QuickCam programs to factory defaults by throwing away the files QuickMovie Prefs, QuickPICT Prefs, USB QuickCam Prefs (if found) from the folder System Folder:Preferences:Connectix.
6. Find the QuickMovie application icon and double-click it to start the program:

   • The program should immediately ask where you want to save your recording.

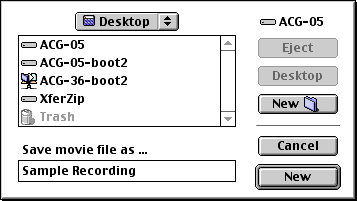

     • Save the still-empty movie file to your folder on the desktop.
     • This file can be named any way you like. We'll use this recording as raw footage for the final video to be edited in the following session.
     • When done saving, a new window appears where you should see a live feed of the video from the camera hooked up to the computer.


   • If the Save dialog box does not appear (perhaps because the program was already running) choose New from the File menu.

     • This will bring up the Save dialog, followed by a new window with live video from the camera.
     • If at any time you need to re-record, make sure to use File-->New again, so that the new recording won't be appended to the old file (otherwise, you can easily end up with a huge file).


7. While watching the video image, make any necessary adjustments to the camera:
   • Aim the camera to frame the subject by changing its position on the base.
   • Rotate the barrel of the camera lens to focus.
   • Look for better illumination if available (this improves contrast and overall image quality).
8. Choose the video recording settings. These are not necessarily the best settings for highest-quality results, but they should allow you to fit your video recording in a small file (as long as you keep it short).

   • Choose Settings-->Sizes-->Half. This yelds a frame size (in pixels) of 176 (width) by 120 (height).

   • Choose Settings-->Destination-->Record. This puts the program in record mode (rather than playback).

   • Choose the option you prefer from the Settings-->Angle Of View submenu. This changes how much of the camera feed is visible in the frame size you selected.

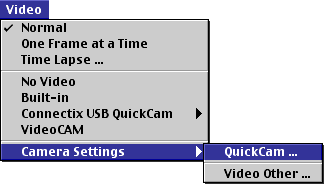

   • Use Video-->Camera Settings-->QuickCam to bring up the Video dialog:

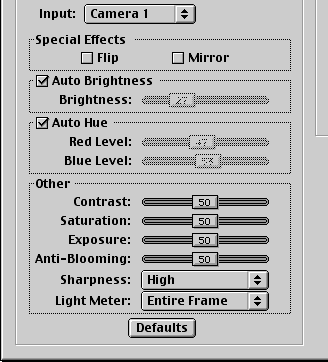

   • Experiment with the settings in this dialog until you are satisfied with the image, as shown in the preview. The settings shown in the illustration below are a good starting point:


9. Next, choose the audio recording settings.
   • Use Audio-->Audio Other to bring up the Sound dialog.

     The Sound dialog contains three sets of options, displayed in turn by using the pop-up menu in the upper-left corner of the dialog. On the right there is an additional section with a meter to check sound levels.
   • Choose 'Source' from the pop-up menu. Select the following options: Device = 'Built-In'; Input = 'Microphone' or "External Mic".

   • Choose 'Sample' from the pop-up menu. Select the following options: Size = '8 Bits'; Use = 'Mono'. For Rate, choose the lowest value available (but no less than '11.025 kHz')--some machines won't go lower than '44.100 kHz'.

   • Choose 'Compression' from the pop-up menu. Select Compressor = 'None'. This is the safest setting at the moment to avoid incompatibilities.

   • In the section to the right, select 'Speaker Off While Recording' (this avoids possible feedback noise). With the Volume slider set to 100, speak into the microphone and adjust the Gain slider so that a consistently high number of green bars is visible, avoiding red bars. Remember to speak in the same manner later on, during the actual recording.

     • NOTE: The program occasionally resets the gain slider. If sound is not being recorded, come back to this dialog and make sure the gain slider is turned up. Also, make sure to speak close to the microphone.


   • Click 'OK' to close the Sound dialog and confirm your settings.
10. Rehearse your act, then proceed to record:
    • Make sure the program is in Record mode (the button at the lower-left of the preview window shows the QuickCam with a red arrow). Click the 'Record' button when ready.


    • During recording, motion in the preview window will be choppy--this won't affect the quality of the file, it's just the computer saving its strengths for recording rather than playback. When done (again, keep it short and to the point!) click the Stop button (which replaces 'Record' while recording).


    • To check your work, use Settings-->Destination-->Edit to put the program in Playback mode (the button at the lower-left of the preview window shows the monitor emanating blue arcs). Click the Play button (the triangle pointing to the right in the control bar--immediately below the image). Click the same button again (it turns to two vertical bars during playback) to stop.


11. Make sure to keep this video recording, so you can use it in your project during next week's session. You can afterwards quit QuickMovie.

return to top

Digitize a still image

1. Find the QuickPICT application icon and double-click it to start the program:

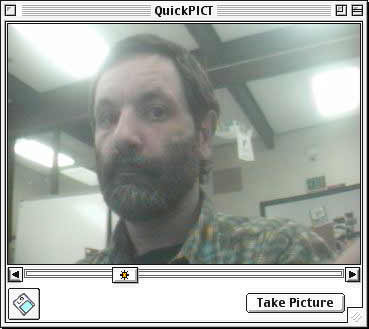

2. Several windows open: close the 'Film Roll' and 'Viewer' windows, use the 'QuickPICT' window to frame and focus.

3. Settings->Destination->File
4. Image->Sizes->Full (will digitize a 352 x 240 pixels image)
5. Image->Picture Depth->Millions
6. Image->Camera Settings->QuickCam: adjust video settings as you did in QuickMovie.

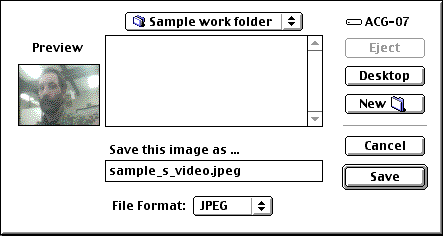

7. Click 'Take Picture' button. In the dialog that follows, choose 'JPEG' from the 'File Format' pop-up menu, then enter the filename following our usual scheme:
   using your last name and first name initial. Save the image file to your folder on the desktop.

8. Make sure to keep this still image, so you can use it in your project during next week's session. You can afterwards quit QuickPICT.

return to top

Create Title Card

1. Look in the startup drive, System Folder, Preferences folder. If the files 'Adobe Premiere® 6.0 Prefs' and 'Prem60.ini' are present, throw them in the Trash. This forces the program back to its factory defaults.
2. Find the Premiere application icon and double-click it to start the program:

3. When the 'Initial Workspace' dialog appears, click either button (it doesn't matter for this stage of the project). It will be followed by a 'Load Project Settings' dialog--dismiss it by clicking 'Cancel'.
4. Use File-->New-->Title to open the Title window.

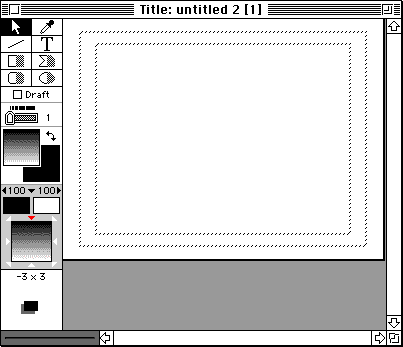

   • This is a drawing program built into Premiere, with features and tools not unlike the ones we saw in other graphics programs (PageMaker, Illustrator, etc.)
   • The dotted boxes at the margin of the blank document are the title-safe and action-safe areas, which are only relevant to work done for TV. The boxes will not appear in the final version, however--and they may be useful to help position your title.

5. Use Window-->Window Options-->Title Window Options to bring up the Title Window Options dialog.
   • Leve Aspect set to Square Pixels (the norm for computer displays).
   • Fill in the frame size (176 W x 120 H).
   • To choose a different background color, click on the box next to 'Background' to bring up a color picker dialog.
     • Click on the color you want.

   • Click 'OK' to exit the dialog(s) and return to your document.
6. Now enter and format the text of your title. Remember to make it legible by using uncomplicated typefaces at the largest size possible.
   • Choose the Type tool ('T') in the toolbox

   • Click anywhere in the document area. A white box and a flashing insertion bar will appear. Start entering text at the keyboard.

   • To reposition the title block, click inside it with the Arrow tool, then drag it to a new location.

   • To resize the title block, click on one of the handles at its edges with the Arrow tool, then drag.

   • To format the type, select it and then:
     • Use the commands in the first two sections of the Title menu. The formatting commands apply to the highlighted portions of the text.
     • Choose new colors in the color picker, brought up by clicking on the color swatches.

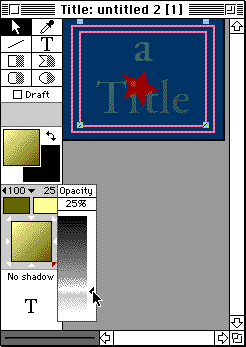

     • Change the transparency of the type with the Opacity pop-up sliders.

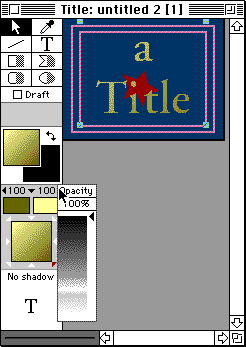

       • Make the type opaque by dragging the slider up.

       • Make the type see-through by dragging the slider down.

     • Change gradient direction by clicking on one of the arrowheads surrounding the gradient preview.

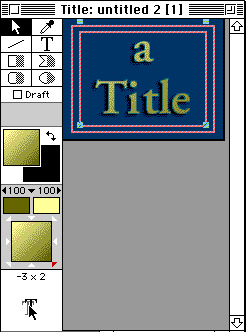

     • Modify the drop shadow by dragging on the shadow preview ('T' at the bottom of the toolbox).

       • You can also change the settings in the Title-->Shadow submenu.
       • A drop shadow is often helpful to increase the separation between the background and the type.
7. Optionally, you can explore the simple drawing tools available in the Toolbox to add other elements to the title card besides type.

   • The shaded right half of the tool icons in the toolbox lets you draw filled shapes; the left half is for drawing the outline of the shape only.
   • Change the thickness of the outline with the slider below the 'draft' checkbox.
   • The Polygon tool comes closest to freehand drawing--it can be used to create arbitrary shapes with straight edges.


8. While the Title window is still active (in front of other windows), use File-->Save to save your work to a Premiere Title file. Also this file will be used in your project during next week's session.
9. Close the Title window and quit Premiere.

return to top
