Assembling animations using Director

| ACG Home | Instructor Home | Class Home | list of tutorials |

To complete the visuals of our animation project, we will take the pictures (cast members) created and/or imported in the previous session, and arrange them on a timeline (called the score). The score is arranged in vertical columns or frames (sequential moments in time); and horizontal rows or channels. The channels in turn are divided into image channels (numbered 1 through 48) which represent the layering of images in the animation (with number 1 appearing behind all others); and special-purpose channels for such things as sounds and timing commands.


Basic Operation:

  1. Once again, check that the computer display is set to 256 colors, then use Director to re-open the animation file you started to work on last time.
  2. Make sure the windows required for this stage of the project are open: Cast, Control Panel, and Score. Use the Window menu if necessary to open them.

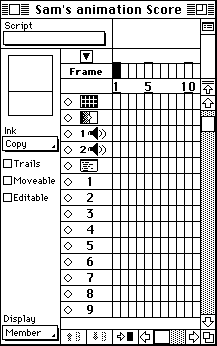

    the Score window

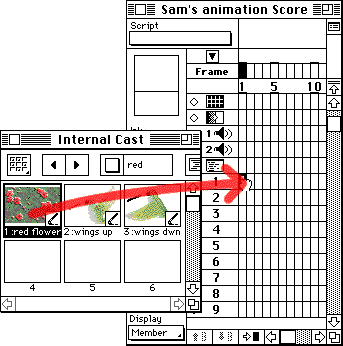

  3. Click on the thumbnail of the background cast member in the Cast window, and drag it to the first cell of the Score (the intersection of frame 1 and channel 1). Dragging to the Score will automatically center the cast member's image on the Stage, which is generally appropriate for the background image.
    drag background cast member to the Score

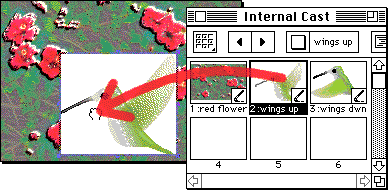

  4. Drag the first picture of your animated character to the Stage. Dragging to the Stage allows you to place the character at a specific position in the frame. The number of the cast member (02 for the example pictured below) will appear in the next available channel of the Score, at the current frame.
    drag Cast Member to the Stage

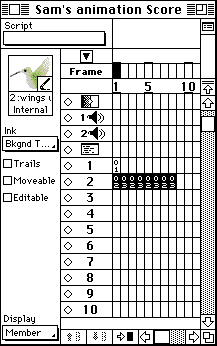

  5. To eliminate the white box around the picture of the animated character, choose Background Transparent from the Ink menu in the left margin of the Score window. Note: this will make all white pixels in the cast member transparent: if this does not work for your picture, try Matte instead. Most other inks can be used for special effects, but many of them will slow down the animation substantially.
    set ink effect to Background Transparent
  6. Continue to drag pictures of the animated character to the stage to indicate the path of its motion (don't forget to change the Ink setting as appropriate). For a looping animation (one that will keep playing indefinitely), you would want the first and last pictures to be located in the same part of the frame. In addition, make sure to alternate the pictures with the different positions of the animated character (in the example below, the hummingbird with wings raised alternates with the hummingbird with wings lowered).
    all the pictures of the animated character on Stage in frame 1

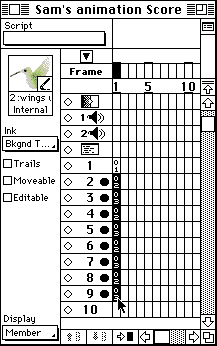

  7. In the Score, you will find a column of entries referring to the cast member you just dragged. Make sure the Display menu at the bottom left of the window is set to Member, then check that the cast member numbers alternate properly. In the example, 02 (wings up) alternates with 03 (wings down). Click and drag to select all the entries for the animated character (make sure you do not select the first cell, used for the background).
    Score cells selected before Space to Time

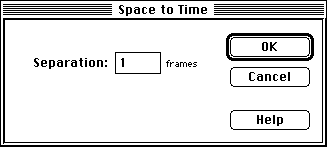

  8. Use the Modify-->Space to Time command. In the dialog, leave the number of frames of Separation set to 1, then click OK.
    the Space to Time dialog

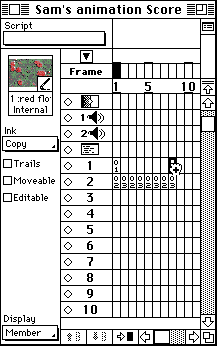

  9. The pictures of the animated character are now arranged in consecutive frames. If you play the animation (Control-->Play), you will see the character move (use Control-->Stop when done watching the animation). Notice, however, that the background flashes on and off.
    Score cells after Space to Time

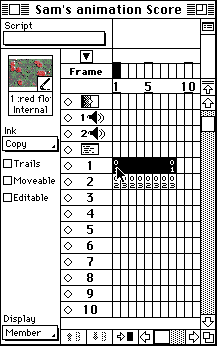

  10. To replicate the background picture in all the frames of the animation, option-drag its entry in the first frame of the first channel to the last frame (frame 8 in the example) of the first channel. This will create a copy of the background picture in the last frame.
    option-drag in Score to duplicate background

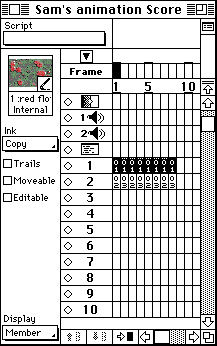

  11. Shift-click on the first frame of the first channel. This will select all the first channel frames of the animation.
    shift-click to select all background cells
  12. Use the command Modify-->Inbetween to fill in all selected frames with copies of the background picture. If you play the animation now, you will see that the background image stays on for the duration of the animation.

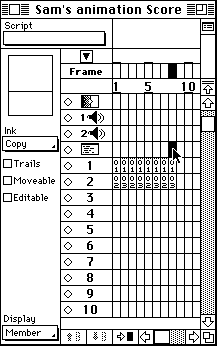

  13. To force the animation to repeat, double-click on the intersection of the last frame of the animation and the Script channel (the first one above channel one). This will open the Script window.
    double-click script channel at the last frame
  14. In the Script window you will see two lines of text already entered for you. The insertion bar is on the second, blank line, sandwiched between the other two. Without moving the insertion point, type:
    go to frame 1
    Altogether, this is a very brief program in Lingo (the programming language built into Director) which causes the playback to resume from frame 1 whenever the last frame completes.

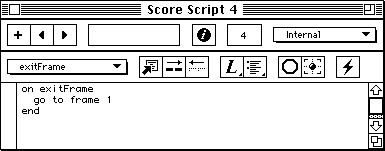

    enter frame script to loop animation
    When done, close the Script window. Notice that a new item representing the script has been added to the Internal Cast window.
  15. The visuals for your animation are now complete. Use File-->Save and Compact to copy the animation to disk, minimizing its file size. In the following sessions, we will work on adding a soundtrack.


Additional Info:


Copyright 1997 by Sandro Corsi. Last modified 3 MAR 97.
